Sensor

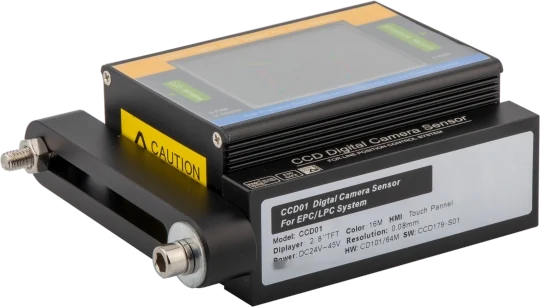

CCD01 Digital Photoelectric Sensor
CCD01 is a digital photoelectric sensor using high-speed color CCD imaging for printed line tracking, color edge detection, transparent film edge detection and graphic tracking in web guiding applications.
Key Features
CCD imaging for printed line, color edge and graphic tracking.
- 2.8-inch full-color display directly shows the material line.
- High-speed color CCD imaging, up to 1000 fps.
- Reduced influence from ambient light in typical production conditions.
- Tracks printed lines, color edges, transparent film edges and combined graphics.
- Operator interface supports automatic edge or line tracking setup.
- Laser-assisted focusing for practical setup.
| Model | CCD01 |
|---|---|
| Sensor Type | CCD digital photoelectric sensor |
| Source / Brand | Pausource |
| Power Supply | DC 24–45 V |
| Output Signal | Digital communication |
| Detection Range | 20 mm |
| Detection Accuracy | 0.02 mm |
| Detection Mode | CCD imaging |
| Illuminant | White / red / green / blue light |
| Shell Material | Aluminum-magnesium alloy |
| Protection Class | IP54 |
Selection Notes
Choose CCD sensing when edge or line detection requires image recognition.
Check First
For simple opaque web edge detection, infrared sensing may be sufficient. For transparent or very low-contrast materials without visible features, ultrasonic sensing may be more suitable.
System Match
Use with a compatible web guiding controller, actuator and correction frame selected for the machine section.
Typical Applications
Printed Line Tracking
Line tracking for printing, laminating and converting processes.
Color Edge Detection
Edge detection where material edge or color contrast must be recognized accurately.
Transparent Film Edge Tracking
Image-based tracking for selected transparent film applications with visible edge features.
Graphic / Mark Tracking
Tracking combined graphics, marks or printed patterns for web guiding correction.
Compatible Components
CCD02 / CCD03 Sensor
Advanced CCD sensor options for larger screen operation or difficult edge recognition.
View Model
ACT01 / ACT03 Servo Actuator
Servo actuator options for standard or heavier correction requirements.
View ModelFAQ
When is CCD01 better than an infrared edge sensor?
CCD01 is more suitable when the web guide must follow a printed line, color edge, graphic mark or visual contrast rather than a simple opaque material edge.
What samples help confirm CCD01 suitability?
Clear photos or short videos of the material edge, printed line, mark color and background color help confirm whether CCD image sensing is appropriate.
Can CCD01 guide transparent film?
It may work when the edge, printed line or mark has enough visible contrast. If the transparent web has no useful visual reference, ultrasonic sensing may be safer.
What RFQ details should be sent for CCD01?
Send machine type, web width, line speed, guiding position, printed-line width, mark color, background color, sensor mounting distance and available installation space.
