Sensor
ES100 Ultrasonic Sensor
ES100 is an ultrasonic edge sensor for detecting web edge deviation in closed-loop web guiding systems. It detects material edges independently of color contrast, making it suitable for transparent, translucent and low-contrast web materials.
Key Features
Ultrasonic edge detection for transparent and low-contrast web materials.
- High-frequency ultrasonic sensing independent of material color contrast.
- Reduced need for color calibration in standard edge tracking applications.
- 7 mm sensing range with 1 ms reaction speed.
- Suitable for light-colored, transparent and low-contrast web materials.
- Analog output 0–5 V plus two ON/OFF switch outputs.
| Model | ES100 |
|---|---|
| Sensor Type | Ultrasonic web guiding sensor |
| Power Supply | DC 12 V |
| Output Signal | 0–5 V / NPN × 2 |
| Detection Range | 7 mm |
| Detection Accuracy | 0.02 mm |
| Detection Mode | Ultrasonic beam |
| Carrier / Response Frequency | 400 kHz / 1 kHz |
| Shell Material | Aluminum-magnesium alloy |
| Protection Class | IP54 |
Replacement & Spare Part
Replacing an ES100 on an existing machine?
ES100 ultrasonic edge sensors are fitted to a large number of converting machines built in China and exported worldwide. If the one on your machine has failed, this is the same model, with the same 12 V supply and the same 0–5 V and NPN outputs.
What to send us
A photo of the installed sensor showing its cable and mounting bracket, the machine make and model, and how many pieces you need. The sensor body carries the model number rather than a maker’s nameplate, so the photo is what confirms a physical match.
What ships
The sensor itself. Mounting bracket and cable can be supplied as well if yours are damaged — say so in your message.
Supply voltage, output signal type, sensing range and the physical form of the housing are what decide whether a unit drops straight in. Compare them against the table above.
Dimension drawing: available on request. Ask for it by email and check it against the unit on your machine before ordering.
Commonly reported ES100 symptoms
Not every fault that looks like a failed unit is one. These are the patterns we are asked about most often, and what they usually turn out to mean.
No output at all, or the controller reports a lost signal
Check the 12 V supply and the cable at the connector first. A cable damaged where it flexes is more common than a failed sensor.
Edge signal drifts or hunts on clear film
Can be the sensor, but check the gap and the bracket first. A sensor that has been knocked out of alignment reads unstably without having failed.
Detects paper but no longer detects transparent film
If it used to work on the same material, the sensor is the likely cause. If it never worked on that material, the sensor type may be wrong for the job rather than faulty.
Reading changes when the bracket is touched
Mechanical. Tighten and realign the mounting before replacing anything.
If the symptom is not on this list, describe it in your message. It is cheaper for both of us to identify the actual fault than to ship the wrong part.
Typical Applications
Transparent Films
Ultrasonic edge sensing for transparent or translucent film materials.
Flexible Packaging
Edge detection for film and packaging webs where color contrast may vary.
Nonwoven Materials
Stable edge feedback for soft or low-contrast nonwoven web materials.
Coating & Laminating Lines
Web edge feedback for coated, laminated or composite roll materials.
Compatible Components
PC100A Controller
Touchscreen web guiding controller for closed-loop edge, center and line guiding.
View Model

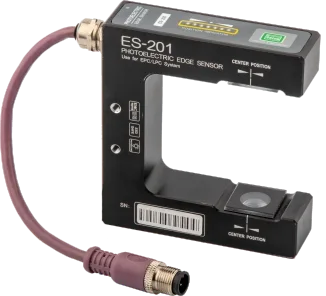

ES201 Infrared Sensor
