Ionizing Fan Static Eliminators

Technical Parameter

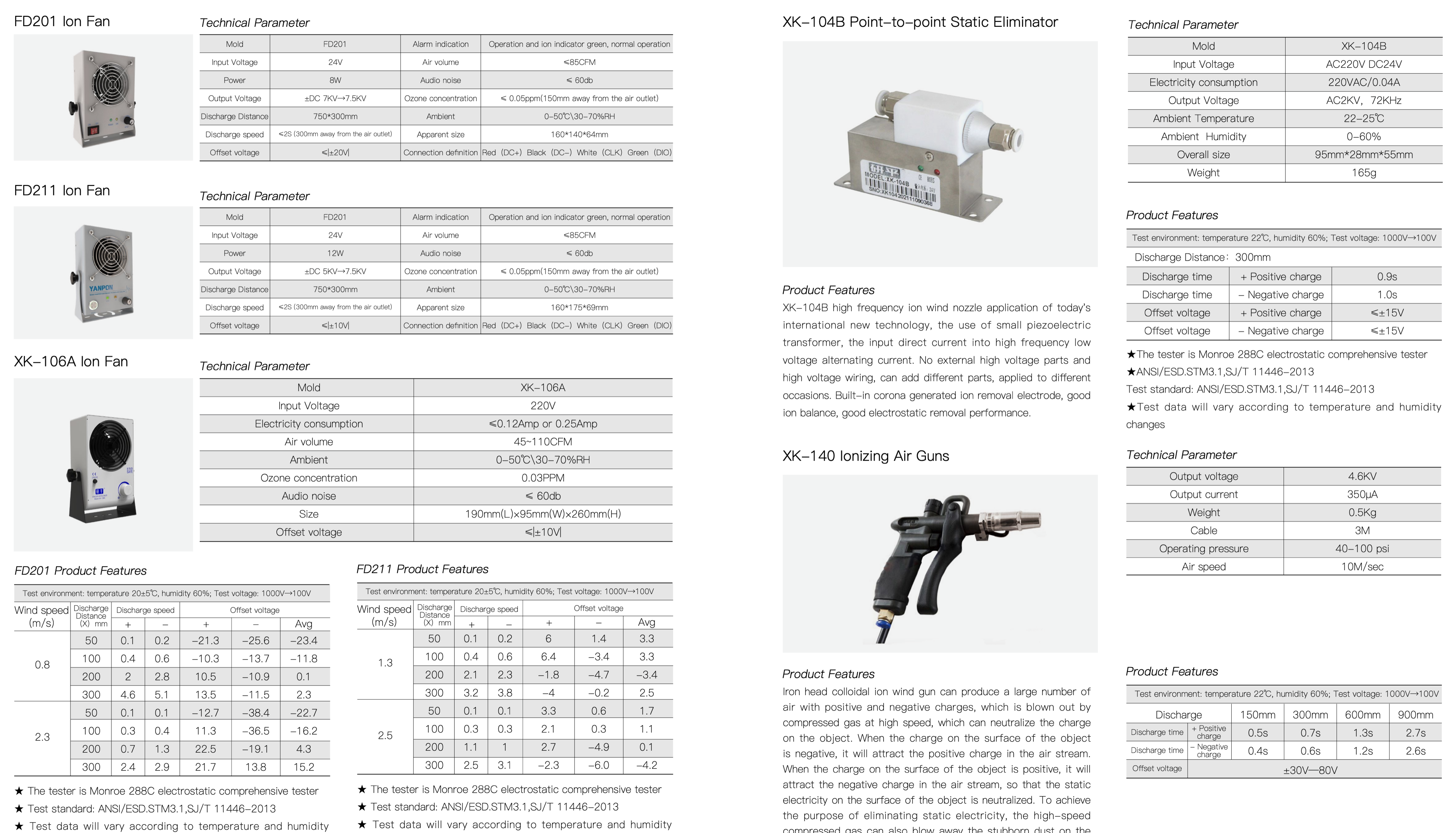

Catalog parameters for Ionizing Fan Static Eliminators.

The catalog static eliminator pages include XK-106A ion fan, FD201 ion fan, FD211 ion fan, XK-104B point-to-point static eliminator and XK-140 ionizing air gun products.

Model	Input voltage	Power	Output voltage	Coverage	Air volume	Discharge speed	Noise	Ozone	Size
FD201	24 V	8 W	±DC 7 → 7.5 kV	750 × 300 mm	≤85 CFM	≤2 s at 300 mm	≤60 dB	≤0.05 ppm	160 × 140 × 64 mm
FD211	24 V	12 W	±DC 5 → 7.5 kV	750 × 300 mm	≤85 CFM	≤2 s at 300 mm	≤60 dB	≤0.05 ppm	160 × 175 × 69 mm
XK-106A	220 V	≤0.12 A or 0.25 A	—	—	45–110 CFM	—	≤60 dB	0.03 ppm	190 × 95 × 260 mm

Point ionizer and ionizing air gun

FD201 and FD211 are 24 V bar-mounted fans for a fixed station; XK-106A is the 220 V bench-top unit with the wider 45–110 CFM range. XK-104B is used where the charged point is small and access is tight, and XK-140 is the hand-held gun for cleaning and neutralising a part before it goes on.

Model	Type	Input	Output	Key data	Size / weight
XK-104B	Point-to-point ionizing nozzle	AC 220 V or DC 24 V	AC 2 kV, 72 kHz	Discharge 0.9 s positive / 1.0 s negative at 300 mm; offset ≤±15 V	95 × 28 × 55 mm, 165 g
XK-140	Ionizing air gun	Compressed air 40–100 psi	4.6 kV, 350 μA	Air speed 10 m/s; discharge 0.5 s at 150 mm to 2.7 s at 900 mm; offset ±30–80 V	0.5 kg, 3 m cable

Product Features

Features shown in the static control catalog.

Built-in corona generated ion removal electrode is listed in the catalog.
Ion balance and electrostatic removal performance are highlighted for fan products.
Ionizing air gun uses high-speed compressed gas to remove stubborn dust while neutralizing static electricity.
Fan, point-to-point and air-gun formats support localized static elimination occasions.

Where an ionizing fan or air ionizer is used

Fixed workstation

FD201 and FD211 are 24 V units for a permanent position over an assembly, inspection or packing station, covering 750 × 300 mm.

Bench and inspection

XK-106A runs on 220 V with a wider 45–110 CFM range, for benches where the airflow has to be adjustable.

Tight or small targets

XK-104B is a point nozzle for a small charged area where a fan or bar will not fit.

Manual cleaning before assembly

XK-140 is the hand-held gun: it neutralises and blows dust off a part in one action before the part goes on.

You may also be interested in

XK900 Series DC Ionizing Bar

A high-performance DC static neutralization bar for wide-web and high-speed converting lines that need stable ion balance and flexible installation distance.

View Series

XK800 Series DC Ionizing Bar

A practical DC ionizing bar series for static elimination on converting, packaging and web handling equipment.

View Series

XK700 Series AC Ionizing Bar

An AC ionizing bar series for static elimination in film, paper, label and packaging applications where reliable neutralization is required.

View Series

Ask about Ionizing Fan Static Eliminators

We select from the manufacturer's published range against your application — we are not a static systems engineering house, and we would rather match the right component than sell you a study. The more of the following you can tell us, the closer the first recommendation will be.
