DC Ionizing Bar
Replace the actual Yanpon DC bar fitted to your winding or converting machine: XK-820B and XK-860B are different models with different working-distance data. Wuxi Yanpon Electronic Technology Co., Ltd. manufactures this range; KENDORIC confirms the nameplate, installed length and electrical connection for a same-model replacement.
Unlike the AC families with external high-voltage boxes, the XK-820B and XK-860B specifications list a DC 24–36 V input at the bar. Start by photographing that label and the existing DC supply. Do not select an XK700A or another AC high-voltage supply just because it appears beside a similar-looking bar elsewhere on this website. The replacement enquiry should describe the actual electrical arrangement already on the machine.
Confirmed XK-800 series replacements are prepared within 7 working days after payment. This is the time to have the goods ready, before courier transit. Include the delivery country and the number of identical units so preparation and transport can be stated separately in your offer.
Send photos of the DC supply label and the XK-820B or XK-860B nameplate, effective bar length in mm and the quantity needed. Measure the supply-to-bar cable route and identify any high-voltage cable fitted in the existing arrangement rather than assuming one is required. A photo of the wiring terminals helps us confirm the connection.
We quote the matching Yanpon DC bar with the agreed cable arrangement. An external supply is included only when specifically identified and listed in the quotation. Describe the lead length required at the machine, and flag any existing high-voltage lead so its purpose can be checked before replacement.
Check whether the installed marking is XK-820B / XK820B or XK-860B / XK860B; the common XK-800 family name does not define the working distance or current demand.
The manufacturer does not publish an AC-style power-box-to-bar matrix for these two DC models. The table records the input connection that is actually specified. It does not invent a two-way or four-way supply arrangement, and a supply must not be selected from the AC family output count.
| Power supply / bar reference | Published electrical data | Output interfaces | Bar connection / matching limit |
|---|---|---|---|
| XK-820B / XK820B | DC 24–36 V ±10% at the bar | Not specified | No separate high-voltage power-box model assigned in the source |
| XK-860B / XK860B | DC 24–36 V ±10% at the bar | Not specified | External DC supply model and number of bars per supply require confirmation |
XK-820B is listed for a discharge distance of 100–500 mm, with a DC 24–36 V ±10% input and tungsten emitters. Its published consumption is 300 mA at 24 V or 200 mA at 36 V. Send the voltage and current information from the supply currently feeding the bar, as well as any connector photograph.
The XK-860B parameter table lists 1000–1500 mm discharge distance, while the introductory catalogue text gives a broader 100–1500 mm range. We use the parameter-table range here and ask you to provide the actual installation distance. That discrepancy is a reason to confirm the operating position before purchase rather than promise performance throughout the broader range.
The same XK-860B table gives 1250 mA consumption at 24 V, and also contains a separate 0.3 A input-current entry. These figures should not be combined into an invented supply sizing rule. A nameplate photograph lets the manufacturer confirm the correct supply requirement for the specific replacement configuration.
Both models are described as operating without aerodynamic assistance. If your current bar has an air line or a different connector arrangement, include it in the photo set. That detail may indicate a different version or a different component than the series title suggests. Record the body and active lengths separately, particularly when the original bar extends past the web edges.

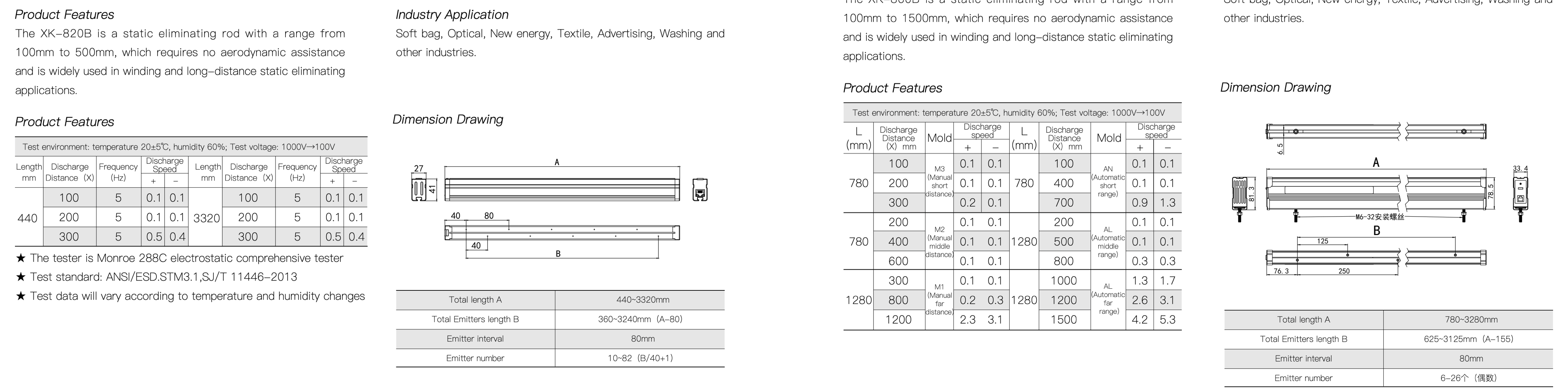

| Model | Output voltage | Discharge distance | Input voltage | Input current | Consumption | Emitter | Ambient temperature |
|---|---|---|---|---|---|---|---|
| XK-820B | ±(8–12) kV | 100–500 mm | DC 24–36 V ±10 % | 0.3 A | 300 mA @24 V / 200 mA @36 V | Tungsten | 0–45 °C |
| XK-860B | ±30 kV | 1000–1500 mm | DC 24–36 V ±10 % | 0.3 A | 1250 mA @24 V | Tungsten | 0–55 °C |
XK-820B is rated for 100–500 mm and XK-860B for 1000–1500 mm. Each has a working window; installing either outside it will reduce results.
DC bars produce positive and negative ions from separate emitters, so a contaminated or worn emitter on one side leaves the web charged. A handheld static meter (YC-S200) shows the polarity before and after the bar. Clean the emitters first.
XK-800 bars run on DC 24–36 V. Check that supply at the bar connector before suspecting the bar.
For a XK-800 replacement quotation, add the installed component labels and the required quantity below.
