Proving a problem before buying
A YC-S200 reading before and after a trial installation is the cheapest way to settle whether static is actually the cause of a defect.
Static Detection
Static Detection Products
Static detection products help identify charged areas, compare static levels before and after neutralization, and support product selection for industrial static control projects.

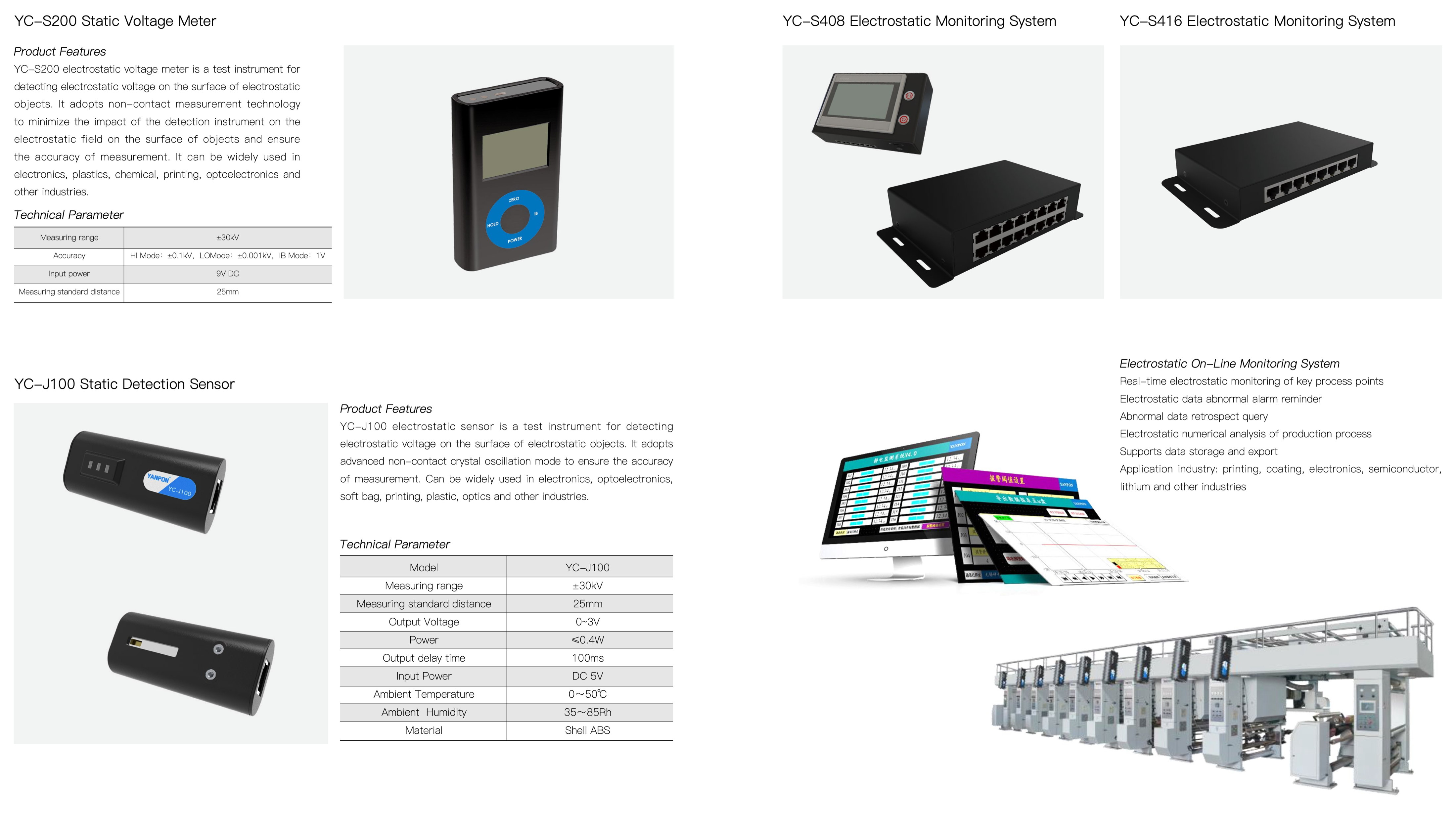

Technical Parameter
Catalog parameters for Static Detection Products.
The catalog detection section includes YC-S200 Static Voltage Meter, YC-S416 Electrostatic Monitoring System and YC-J100 Static Detection Sensor products.
| Model | Type | Measuring range | Standard distance | Output | Power | Accuracy / notes |
|---|---|---|---|---|---|---|
| YC-S200 | Hand-held static voltage meter | ±30 kV | 25 mm | — | 9 V DC | HI ±0.1 kV, LO ±0.001 kV, IB 1 V; non-contact measurement |
| YC-J100 | Static detection sensor | ±30 kV | 25 mm | 0–3 V | DC 5 V, ≤0.4 W | 100 ms output delay; 0–50 °C, 35–85 % RH; ABS housing |
| YC-S408 | Electrostatic monitoring system | — | — | — | — | Online monitoring of process points with abnormal-value alarm |
| YC-S416 | Electrostatic monitoring system | — | — | — | — | Online monitoring of process points with abnormal-value alarm |
Product Features
Features shown in the static control catalog.
- Detects electrostatic voltage on the surface of electrostatic objects.
- Uses advanced non-contact crystal oscillation mode to ensure measurement accuracy.
- Electrostatic online monitoring system supports real-time monitoring of key process points.
- YC-J100 sensor provides static detection output for process monitoring.
Where static measurement is needed
Continuous process monitoring
YC-J100 sensors feed the YC-S408 and YC-S416 systems for permanent monitoring of key points, with an alarm when readings go outside limits.
Commissioning and acceptance
Non-contact measurement at ±30 kV over a 25 mm standard distance, for verifying that an installed bar is doing its job.
Fault finding
Where a defect appears intermittently, measurement at several points along the line usually locates the charge source faster than trial and error.
