Static Generation Products

Technical Parameter

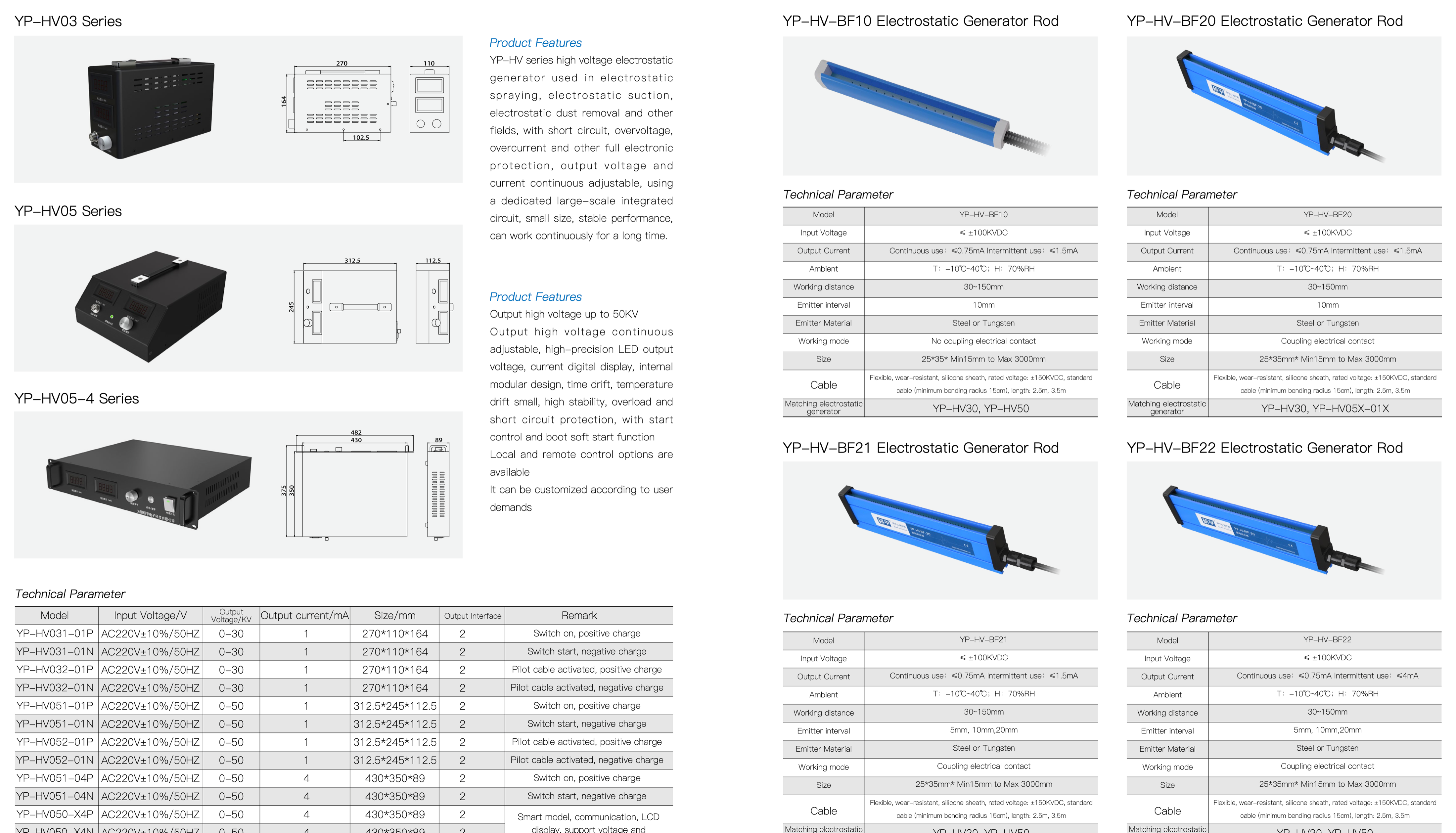

Catalog parameters for Static Generation Products.

The catalog static generation section includes YP-HV03, YP-HV05, YP-HV05-4, YP-HV-BF generator rods and YP-HV05-X4 smart high-voltage power supply products.

Model	Input voltage	Output voltage	Outputs	Size (mm)	Activation
YP-HV032-01P	AC 220 V ±10 % / 50 Hz	0–30 kV	1	270 × 110 × 164	Pilot cable, positive charge
YP-HV032-01N	AC 220 V ±10 % / 50 Hz	0–30 kV	1	270 × 110 × 164	Pilot cable, negative charge
YP-HV051-01P	AC 220 V ±10 % / 50 Hz	0–50 kV	1	312.5 × 245 × 112.5	Switch on, positive charge
YP-HV051-01N	AC 220 V ±10 % / 50 Hz	0–50 kV	1	312.5 × 245 × 112.5	Switch on, negative charge
YP-HV052-01P	AC 220 V ±10 % / 50 Hz	0–50 kV	1	312.5 × 245 × 112.5	Pilot cable, positive charge
YP-HV052-01N	AC 220 V ±10 % / 50 Hz	0–50 kV	1	312.5 × 245 × 112.5	Pilot cable, negative charge
YP-HV051-04P	AC 220 V ±10 % / 50 Hz	0–50 kV	4	430 × 350 × 89	Switch on, positive charge
YP-HV051-04N	AC 220 V ±10 % / 50 Hz	0–50 kV	4	430 × 350 × 89	Switch on, negative charge
YP-HV050-X4P	AC 220 V ±10 % / 50 Hz	0–50 kV	4	430 × 350 × 89	Smart model: LCD, local and remote control
YP-HV050-X4N	AC 220 V ±10 % / 50 Hz	0–50 kV	4	430 × 350 × 89	Smart model: LCD, local and remote control

Charging bars (YP-HV-BF series)

Read this page carefully if you arrived looking for static elimination: an electrostatic generator does the opposite. It creates a controlled charge to pin film to a chill roll, hold two webs together before laminating, or hold sheets in a stack. The bar is driven by one of the generators above; the pair is specified together.

YP-HV-BF series electrostatic charging bar

Model	Input voltage	Output current	Working distance	Emitter interval	Working mode	Size
YP-HV-BF10	≤ ±100 kVDC	Continuous ≤0.75 mA, intermittent ≤1.5 mA	30–150 mm	10 mm	No coupling electrical contact	25 × 35 mm, 15–3000 mm
YP-HV-BF20	≤ ±100 kVDC	Continuous ≤0.75 mA, intermittent ≤1.5 mA	30–150 mm	10 mm	Coupling electrical contact	25 × 35 mm, 15–3000 mm

Product Features

Features shown in the static control catalog.

YP-HV high-voltage electrostatic generator is used for electrostatic spraying, electrostatic suction and electrostatic dust removal fields.
Output voltage and current are continuously adjustable, with digital display on generator products.
Catalog describes modular design, small time drift and temperature drift, high stability, overload and short-circuit protection.
Smart high-voltage power supply includes voltage/current display, protection functions and controllable output electrical characteristics.

Where a generator is used — this creates charge, not removes it

Pinning film to a chill roll

A controlled charge holds the film flat against the roll so it cools evenly and does not lift at the edges.

Holding two webs together

Before laminating or before a nip, a charge keeps the layers registered without mechanical clamping.

Sheet stacking and positioning

Charge holds a sheet in place while the next operation happens.

Not for static elimination

If your problem is charge that you want to get rid of, this is the wrong product family — see the ionizing bars and fans instead.
