No power available
Ropes and brushes are passive. There is no power supply, no ozone, no controller and nothing to fail — they bleed charge to earth through their own conductivity.
Static Rope & Brush
Static Rope & Static Brush Products
Static rope and static brush products provide grounded contact or near-contact discharge support for selected material paths, rollers and winding sections.
Technical Parameter
Catalog parameters for Static Rope & Static Brush Products.

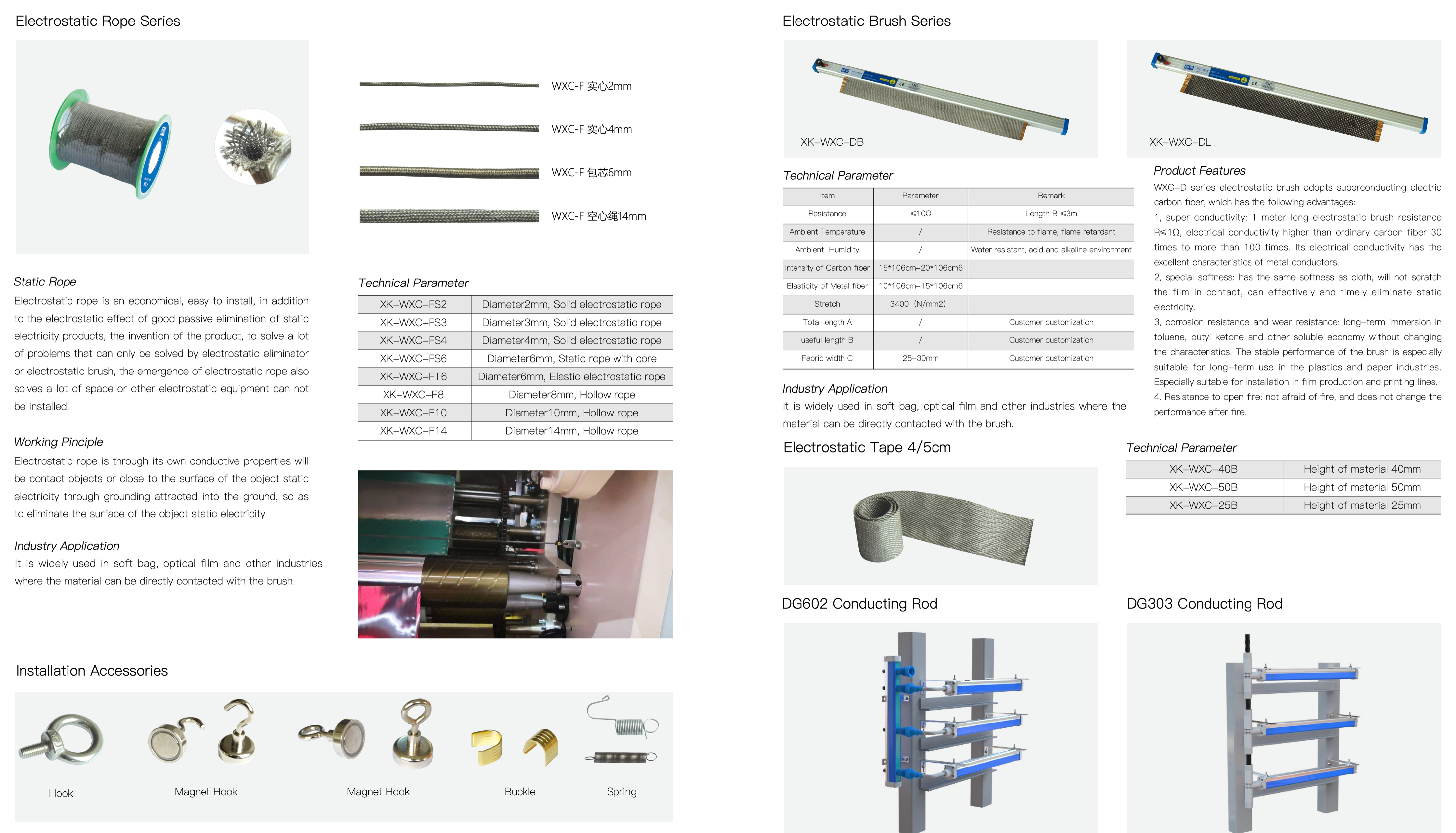

The catalog includes Electrostatic Rope Series, Electrostatic Tape, Electrostatic Brush Series and installation accessories for grounded static discharge applications.
| Model | Diameter | Construction |
|---|---|---|
| XK-WXC-FS2 | 2 mm | Solid static rope |
| XK-WXC-FS3 | 3 mm | Solid static rope |
| XK-WXC-FS4 | 4 mm | Solid static rope |
| XK-WXC-FS6 | 6 mm | Static rope with core |
| XK-WXC-FT6 | 6 mm | Elastic static rope |
| XK-WXC-F8 | 8 mm | Hollow rope |
| XK-WXC-F10 | 10 mm | Hollow rope |
| XK-WXC-F14 | 14 mm | Hollow rope |
Static brushes, tapes and accessories
Ropes and brushes are passive: they bleed the charge to earth through their own conductivity, so there is no power supply, no ozone and nothing to fail. They are the right answer where a bar will not fit, where the material can touch the brush, or as a backup to an active bar. Brush fibre is superconducting carbon fibre — around 30 to 100 times more conductive than ordinary carbon fibre — and soft enough not to scratch film.
| Model | Type | Key data |
|---|---|---|
| XK-WXC-DB | Static brush | Resistance ≤10 Ω; useful length ≤3 m; fabric width 25–30 mm; tensile 3400 N/mm² |
| XK-WXC-DL | Static brush | Resistance ≤10 Ω; total and useful length to customer specification |
| XK-WXC-25B | Static tape | For material height 25 mm |
| XK-WXC-40B | Static tape | For material height 40 mm |
| XK-WXC-50B | Static tape | For material height 50 mm |
| DG602 / DG303 | Conducting rod | Mounting and earthing rod for rope and brush installations |
Product Features
Features shown in the static control catalog.
- Electrostatic rope is described as solving many static problems where a static eliminator or brush is difficult to install.
- Working principle: static electricity is attracted to ground by contact or close approach to the object surface.
- WXC-D series electrostatic brush uses superconducting electric material in contact with film to eliminate static electricity effectively and in time.
- Brush performance is described as stable and especially suitable for long-term use in plastics and paper industries.
Where ropes and brushes are used instead of a bar
No space for a bar
A rope can be strung where a bar body will not fit, which is often the reason it is chosen over an active bar.
Direct material contact acceptable
Brush fibre is superconducting carbon fibre, soft enough not to scratch film, so it can touch the web.
Backup to an active bar
Commonly fitted alongside a powered bar as a second line, particularly on optical film and soft bag lines.
