Integrated frame — up to 450 mm
Below roughly 450 mm web width the integrated frame is normally the right answer: one unit, no machine frame modification, fastest installation. Typically fitted in the in-process section.
Guiding Frame
Integrated Web Guiding Frame
The EURDOW C series integrated frame arrives as one finished unit — frame, guide rollers, edge sensor, electric actuator and controller assembled, aligned and function-tested together. There is nothing to fabricate, nothing to align on site and no bracket engineering for your team to do.
Why Integrated
One unit, one part number, one installation.
A web guide built from separate components needs a frame designed, rollers sourced, an actuator mounted, a sensor bracket made and the whole assembly aligned before it will hold a straight web. On a new machine that is engineering time; on a retrofit it is usually the reason the project stalls.
The integrated frame removes all of it. You give the web width, the material and where in the machine it goes; the unit ships ready to bolt in and run.
- Frame, rollers, sensor, actuator and controller assembled and tested as one unit
- 0.1 mm guiding accuracy
- Web widths from 160 mm to 750 mm as standard
- Ultrasonic or infrared edge sensor, selected by material
- Optional manual or pneumatic splicing table
- Typically 7 working days for normal quantities
| Product Type | Integrated web guiding frame |
|---|---|
| Series | C series (standard), FTK (non-standard) |
| Source / Brand | EURDOW |
| Web Width | 160–750 mm standard |
| Guiding Accuracy | 0.1 mm |
| Roller Diameter | 60 mm or 75 mm |
| Roller Outer Spacing | 220 / 250 / 300 / 350 mm by model |
| Sensor Options | Ultrasonic (S) or infrared (R) |
| Controller | WGC01 button panel or WFC01 color screen |
| Display Language | English selectable on all screen-equipped controllers |
| Splicing Table | Optional — manual (-S) or pneumatic (-Q) |
| Typical Position | In-process section |
| Gross Weight | 12–41 kg by model |
| Lead Time | 7 working days, typical quantities |
Where It Comes From
The default web guide on Chinese-built label presses.
EURDOW integrated frames are not the cheapest domestic option, and we would rather say that plainly than pretend otherwise. What they are is the unit that the Chinese narrow-web label printing industry has settled on — by our estimate more than 70 % of that market — to the point that machine builders specify it without evaluating alternatives.
Chinese printing machinery manufacturers fit these frames as original equipment across PS-plate offset, flexo, digital, intermittent rotary, die-cutting and post-press machines — thirteen of the best-known builders in the sector are among them. Those machines are exported, which is why the EURDOW nameplate turns up on production lines well outside China.
For a machine builder evaluating a guiding supplier, that is the useful part: this is not a prototype being sold into your machine. It is a unit that has already been through the engineering reviews of the sector's leading builders and is running in the field.

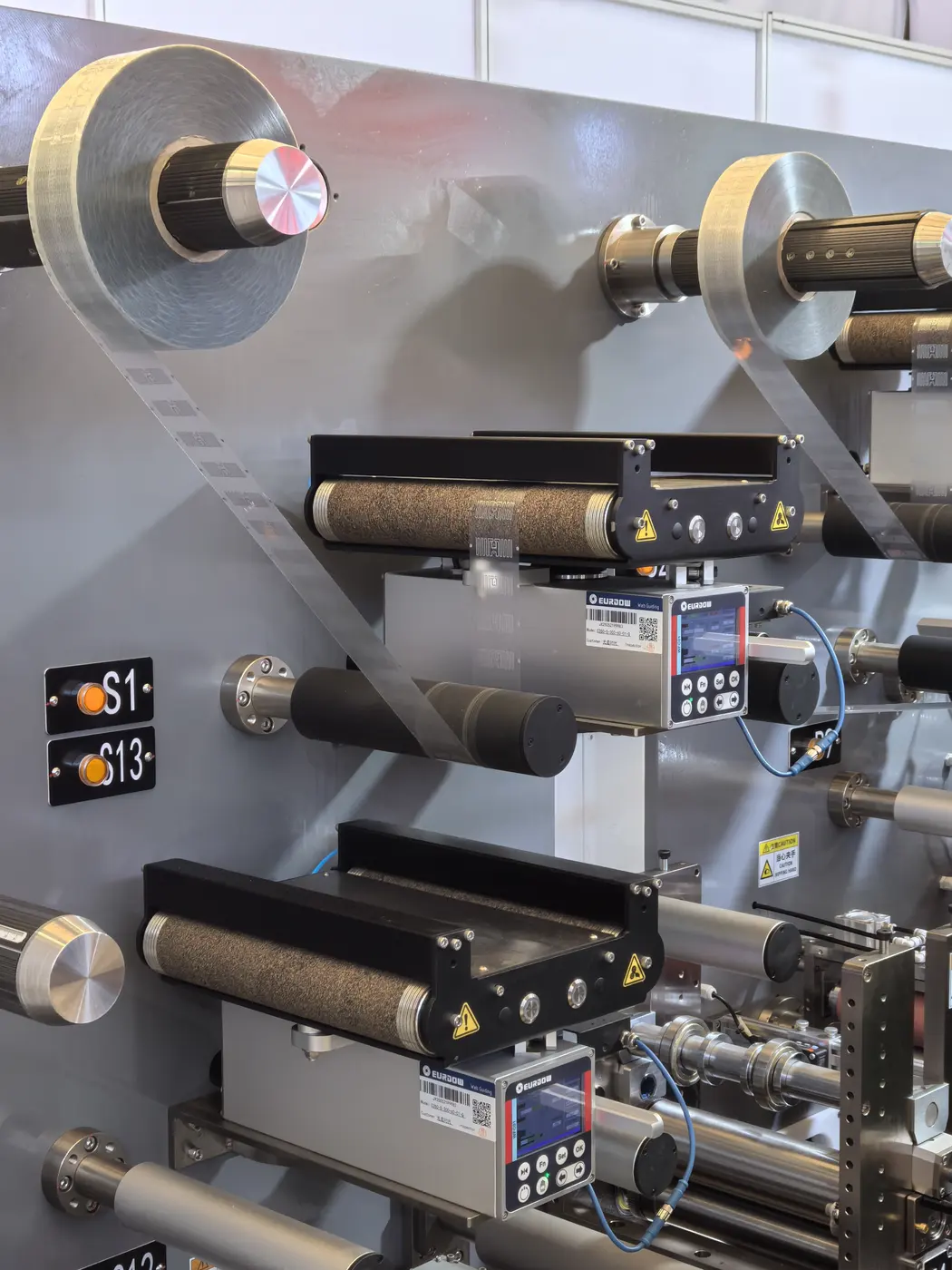

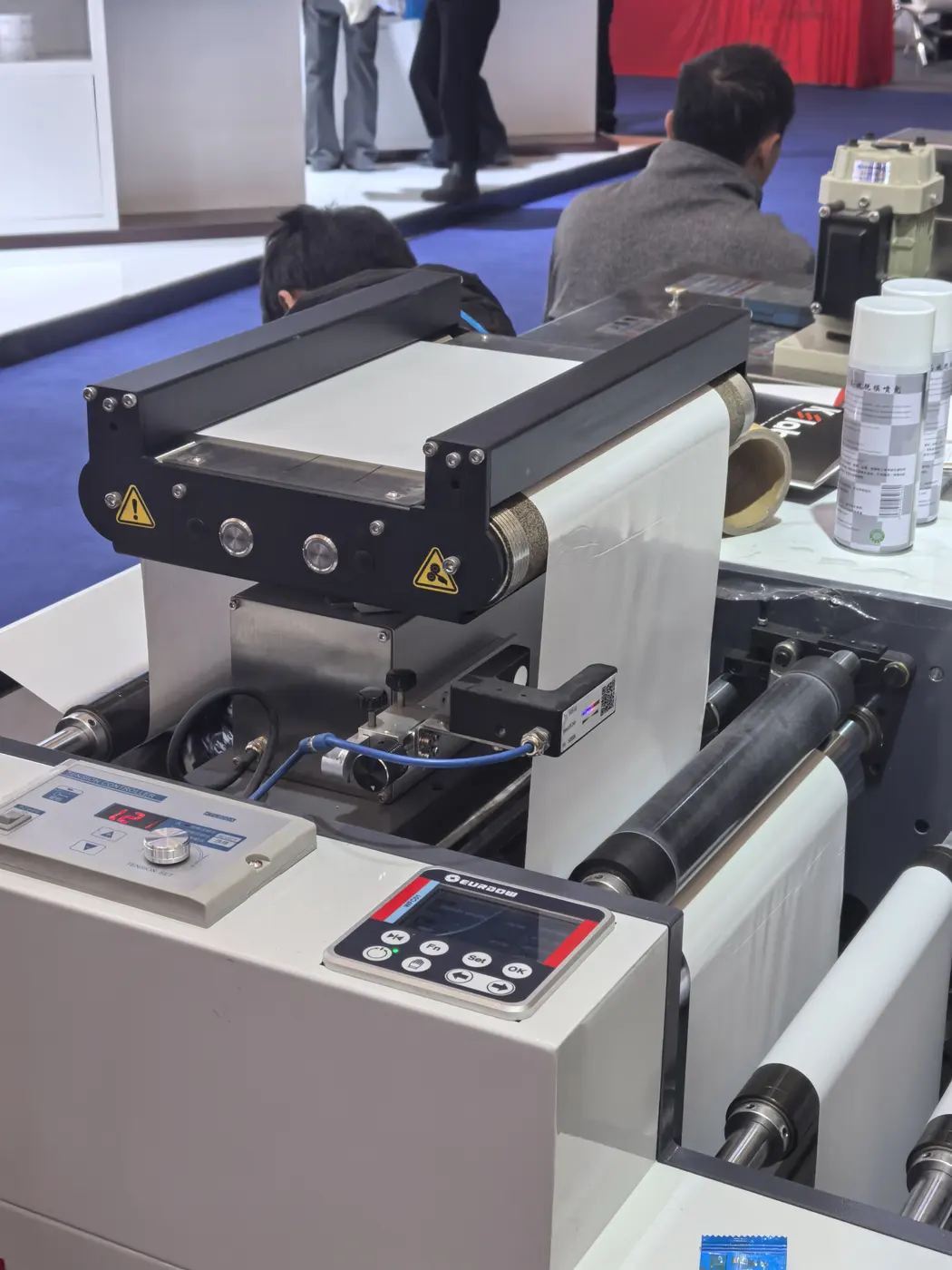

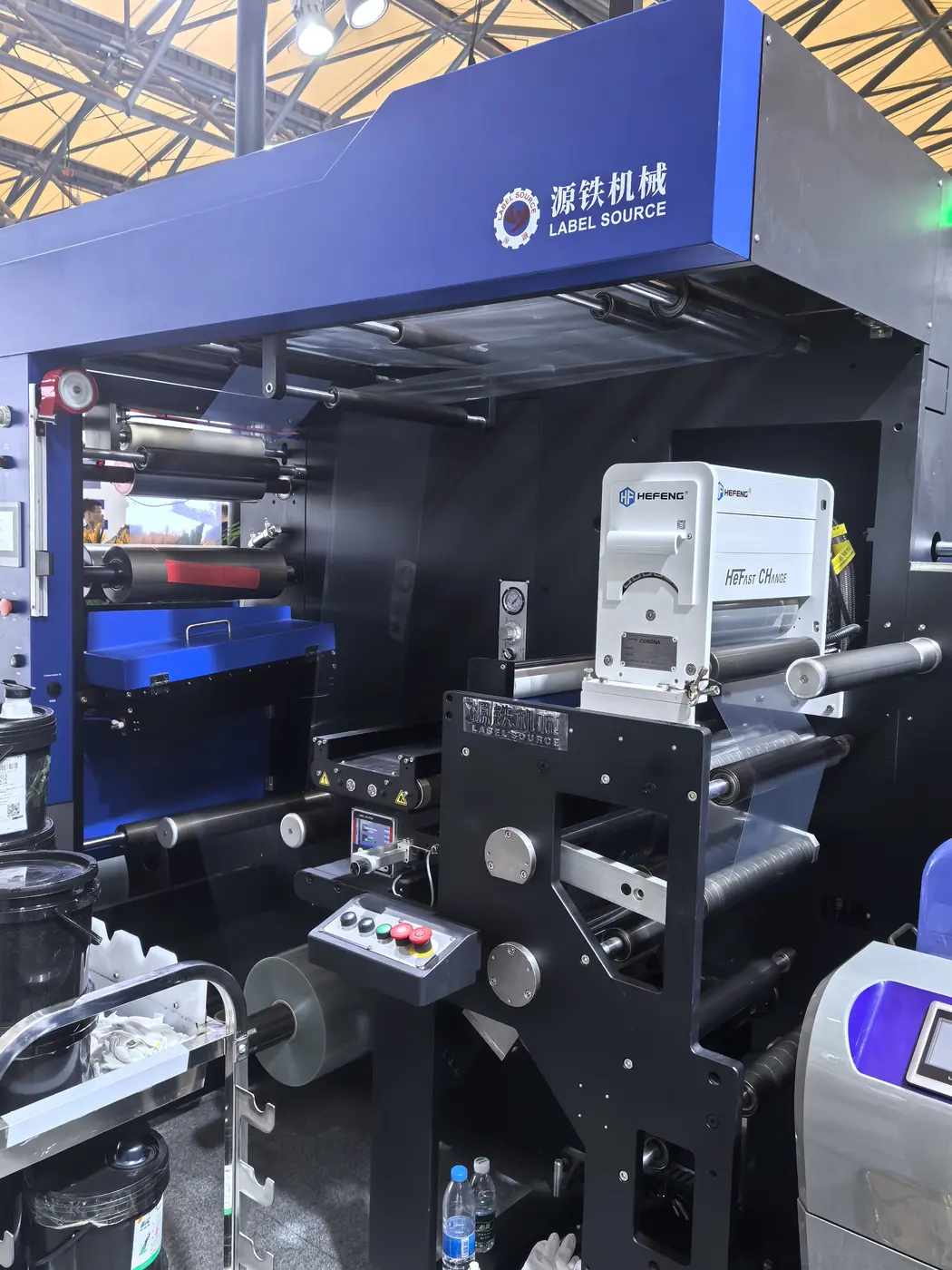

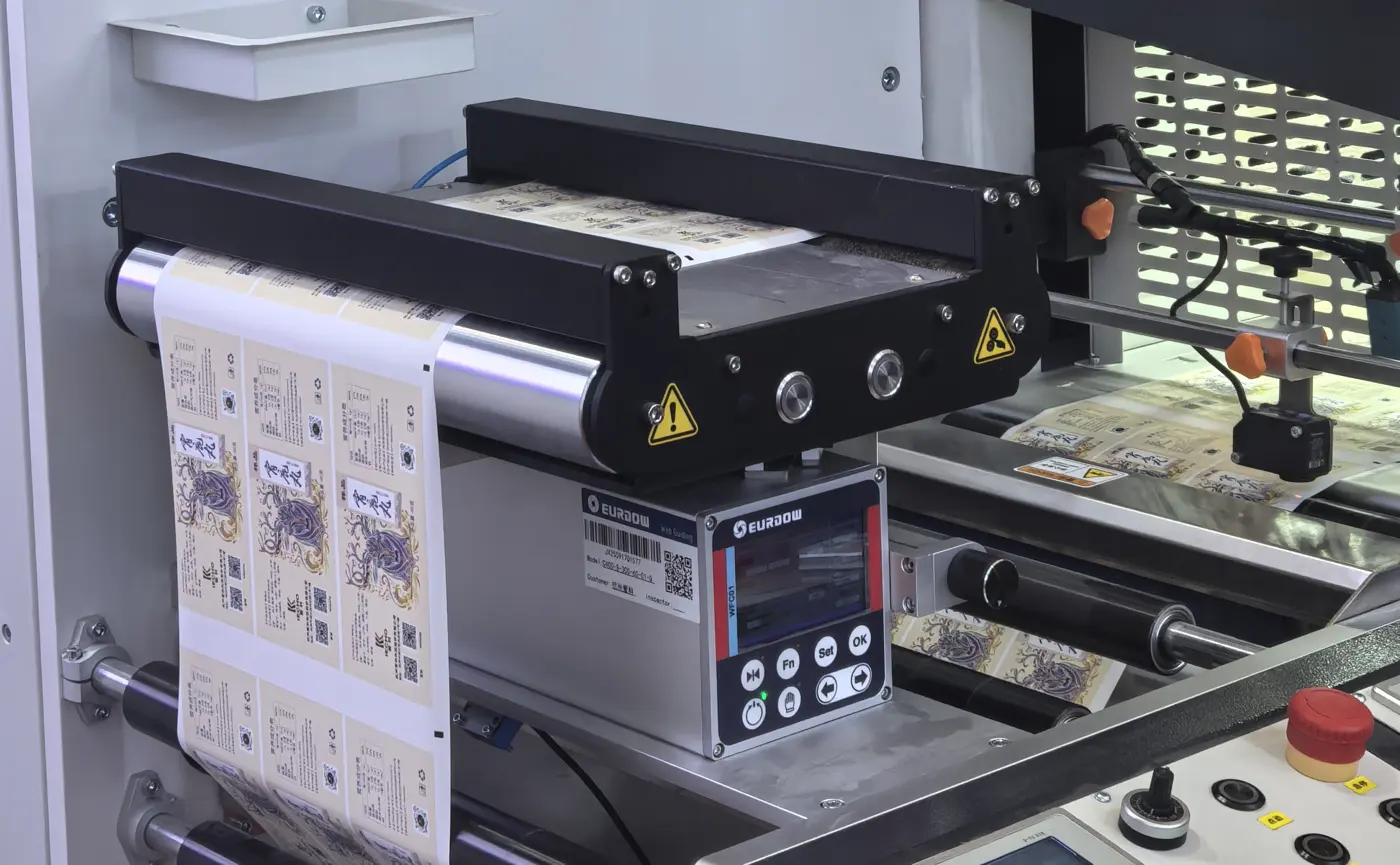

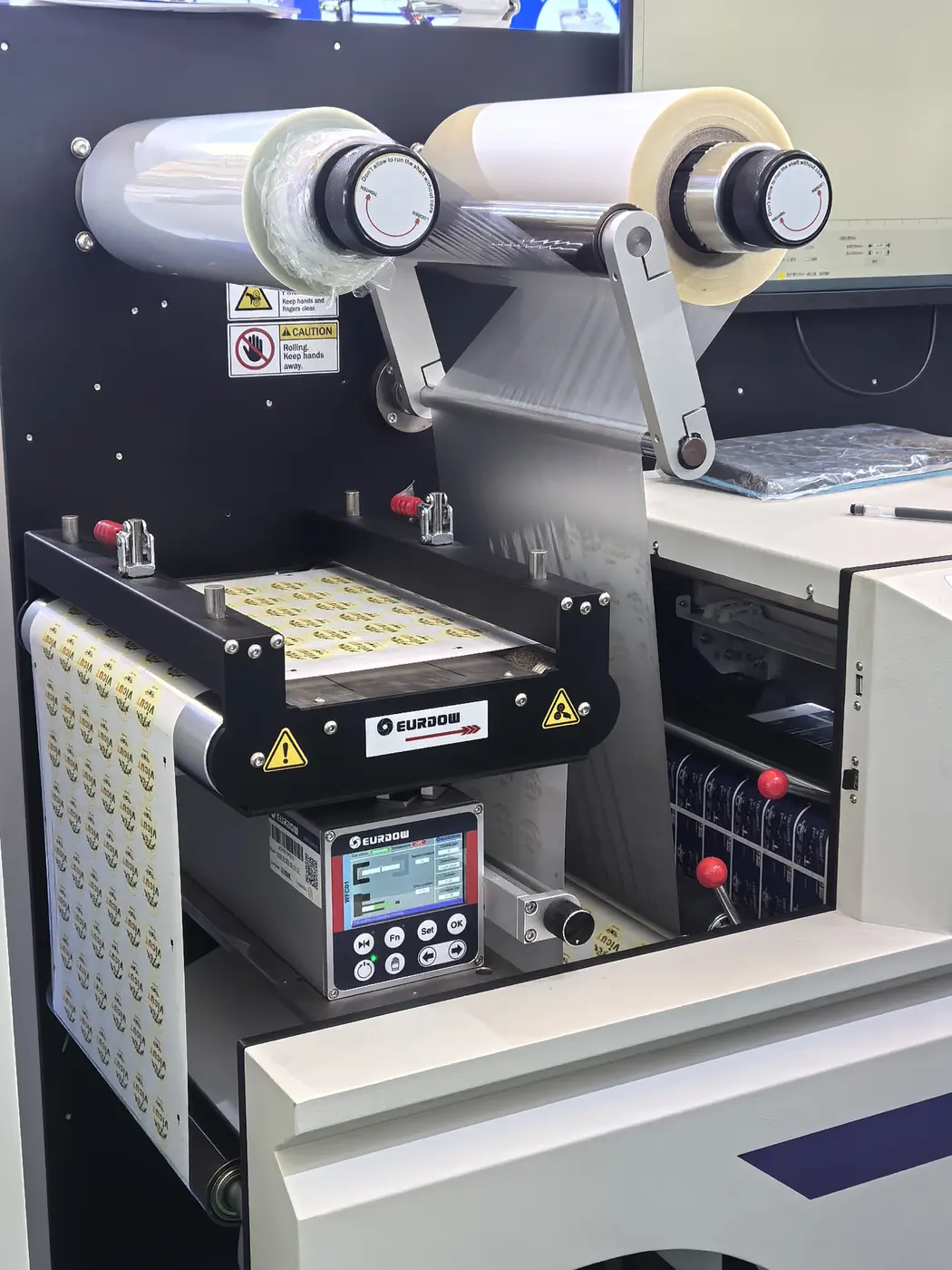

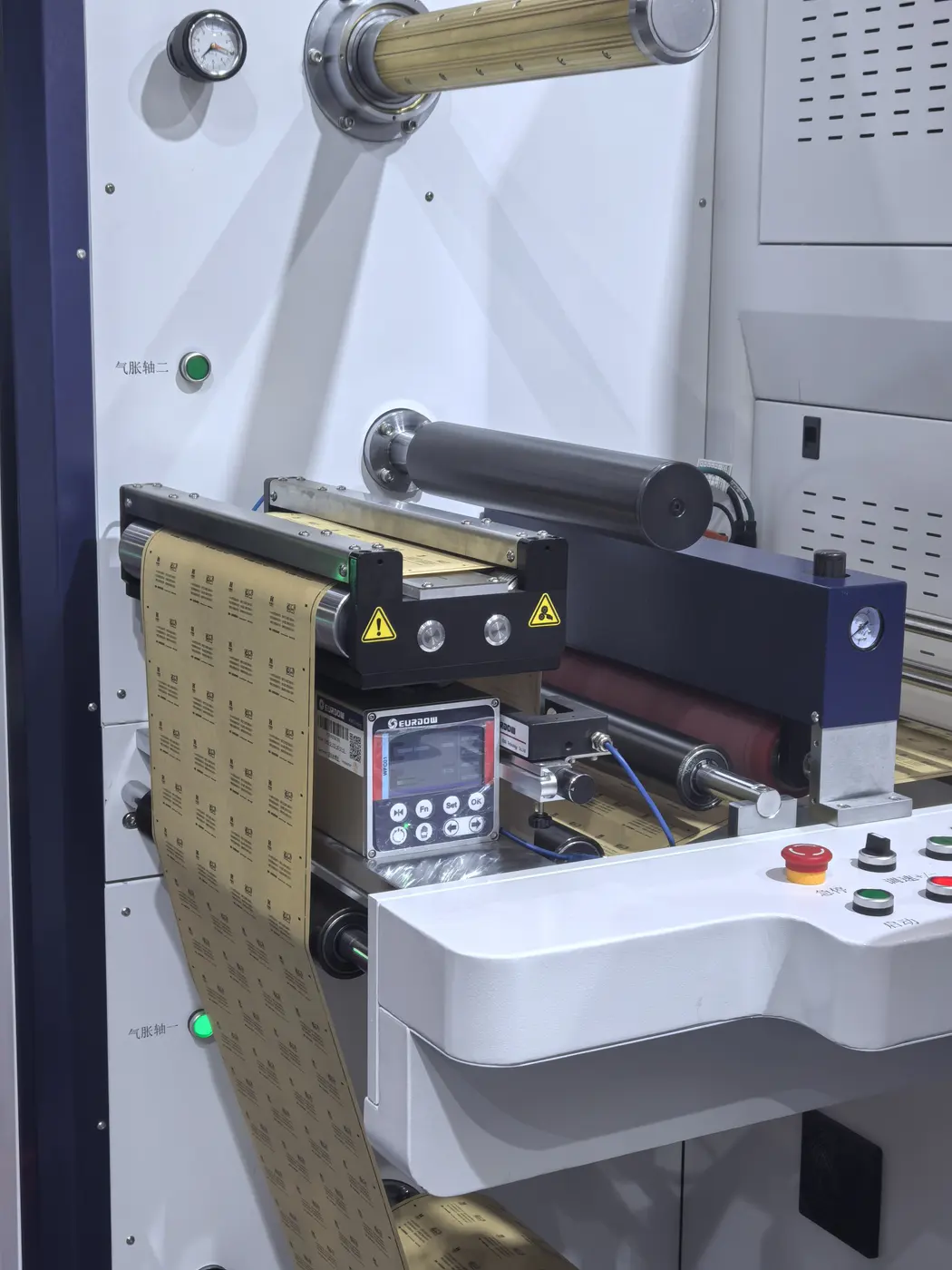

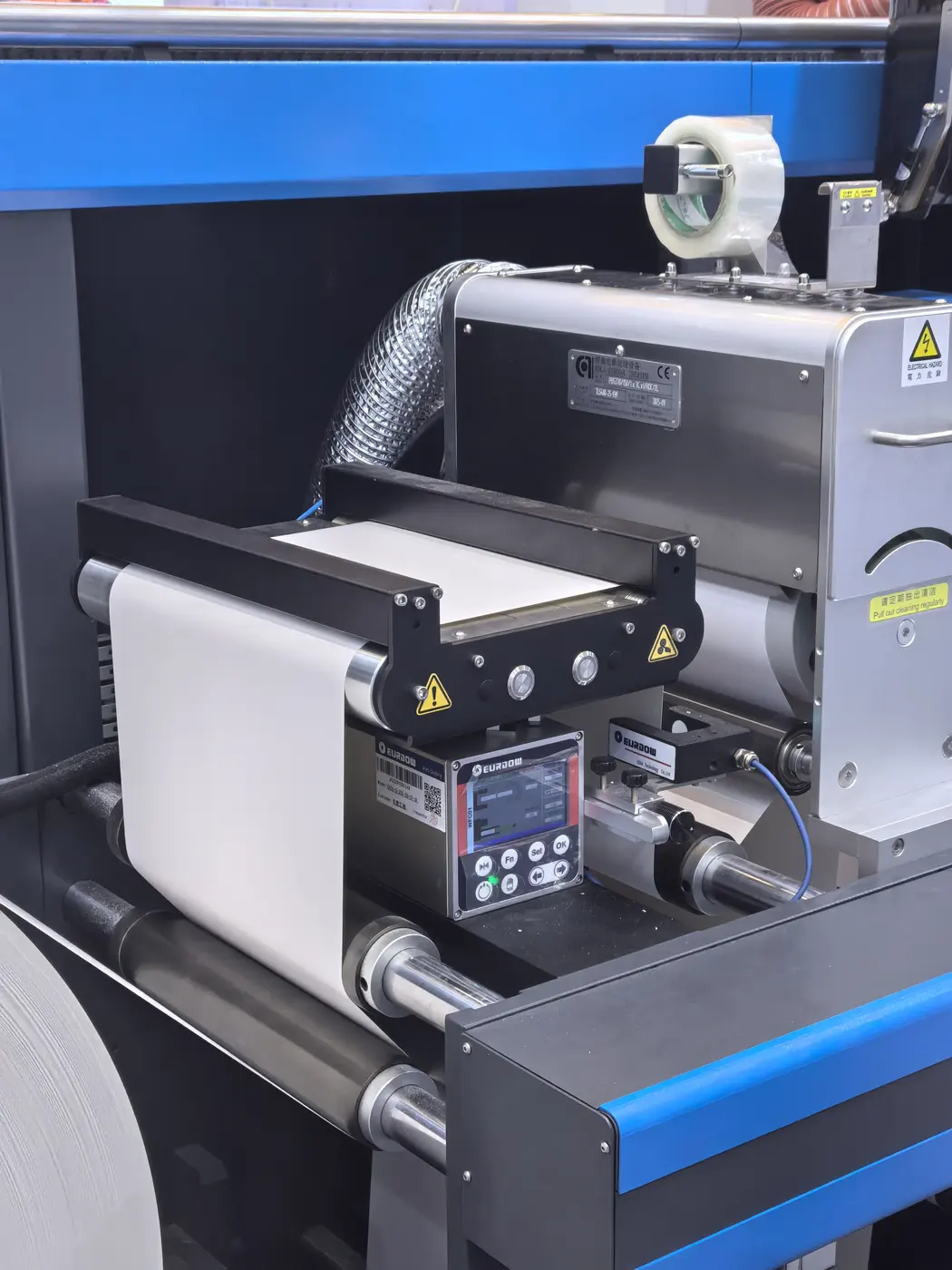

Photographed at Labelexpo Asia, Shanghai 2025
Every one of these is a different machine on a different builder's stand. We did not arrange any of it — we walked the hall and photographed what was already fitted. It is the clearest picture we can give you of how settled this choice is in the sector.
Photographs show third-party machines exhibited publicly at Labelexpo Asia 2025. Any brand names visible remain the property of their owners, and their appearance does not imply any endorsement of KENDORIC.
How to read the model code
Every standard unit is described completely by its model code. Worth knowing before you request a quotation — it tells us the whole specification in one string.
| Example: C400-S-300-60-01-Q | |
|---|---|
| C | Standard model. FTK instead means a non-standard build. |
| 400 | Web width in mm |
| S | Ultrasonic sensor. R means infrared sensor. |
| 300 | Roller outer spacing in mm |
| 60 | Roller diameter in mm (60 or 75) |
| 01 | Web running direction |
| -Q | Pneumatic splicing table included. -S means manual splicing table. No suffix means no splicing table. |
Standard models, packing dimensions and gross weights
Published so you can estimate freight before asking us for a price. Weights are gross, per unit, in export packing.
| Model | Packing size (mm) | Gross weight |
|---|---|---|
| C160-S-220-60-01 | 585 × 420 × 385 (2 units) | 20 kg |
| C200-S-250-60-01 | 490 × 360 × 300 | 12 kg |
| C250-S-250-60-01 | 490 × 360 × 300 | 12.5 kg |
| C250-S-250-60-01-S | 555 × 370 × 340 | 15 kg |
| C250-S-250-60-01-Q | 555 × 370 × 340 | 17 kg |
| C300-S-250-60-01 | 490 × 365 × 310 | 14 kg |
| C300-S-250-60-01-Q | 555 × 370 × 340 | 18.5 kg |
| C350-S-300-60-01 | 555 × 370 × 340 | 16 kg |
| C350-S-300-60-01-Q | 585 × 420 × 385 | 20 kg |
| C400-S-300-60-01 | 555 × 370 × 340 | 16 kg |
| C400-S-300-60-01-S | 585 × 470 × 385 | 21 kg |
| C400-S-300-60-01-Q | 585 × 470 × 385 | 23 kg |
| C450-S-300-60-01 | 585 × 470 × 385 | 18 kg |
| C450-S-300-60-01-S | 585 × 470 × 385 | 22 kg |
| C450-S-300-60-01-Q | 585 × 470 × 385 | 24 kg |
| C500-S-300-60-01 | 695 × 470 × 340 | 20.5 kg |
| C500-S-300-60-01-S | 695 × 470 × 340 | 28.9 kg |
| C500-S-300-60-01-Q | 695 × 470 × 340 | 29.5 kg |
| C550-S-300-60-01 | 695 × 470 × 340 | 21.8 kg |
| C550-S-300-60-01-Q | 695 × 470 × 340 | 30 kg |
| C600-S-300-60-01 | 870 × 460 × 340 | 25 kg |
| C600-S-350-60-01-Q | 870 × 460 × 340 | 32 kg |
| C650-S-350-60-01 | 870 × 460 × 340 | 34.5 kg |
| C650-S-350-60-01-Q | 870 × 460 × 340 | 38 kg |
| C700-S-350-75-01 | 870 × 460 × 340 | 27 kg |
| C700-S-350-75-01-Q | 870 × 460 × 340 | 41 kg |
| C750-S-350-75-01 | 870 × 460 × 340 | 28.6 kg |
Models listed with an S sensor code are also available with an R infrared sensor at the same dimensions. Web widths, roller spacings and roller diameters outside this table are built as FTK non-standard units.
Selecting the right structure
Split frame — above 450 mm
Above about 450 mm we recommend a split or steering frame instead. Wide-web versions are built in extruded profile or square-tube construction depending on the load and the machine layout.
See structure optionsSingle roller frame
Used at specific positions on specific machines — for example at the oven exit of a coating line, where a two-roller structure will not fit or is not wanted.
CF series — unwind / rewind guiding
Not a frame. The CF series is the control package only — controller, sensor, actuator and cables — for guiding an existing unwind or rewind stand. CF50 to CF260, 8–14.5 kg.
Ultrasonic or infrared sensor
Ultrasonic (S) is the general-purpose choice and handles transparent, glossy and low-contrast material. Infrared (R) suits opaque webs with a clean, stable edge. Perforated material needs to be discussed before selection.
Compare sensorsSplicing table
Optional. The manual table (-S) is the cheaper choice; the pneumatic table (-Q) is faster and easier for operators changing rolls frequently. Neither changes the guiding specification.
Before You Order
Three things we confirm first.
We would rather ask these before quoting than ship a unit that will not fit. Once they are settled, the frame arrives ready to install and run — no commissioning visit, no field alignment.
- Is there already a web guide on the machine? Replacing an existing unit and adding one to a machine that never had one are different jobs.
- How much installation space is available? Mounting depth and the space between existing rollers decide which roller spacing works.
- What material, width and machine section? This sets the sensor type and the model code.
| What we need from you | Web width, material, line speed |
|---|---|
| And | Machine type and builder |
| And | Where in the machine it goes |
| Helpful | Photo of the intended mounting position |
| Lead time | 7 working days, typical quantities |
| Shipping | Gross weights published above for freight estimation |
What Goes Into the Unit
WFC01 / WGC01 Controller
Color screen or button panel, both with 0.1 mm system control accuracy and RS485 Modbus-RTU.
View Model
EDS-02 / EDR-02 Sensor
Ultrasonic or infrared edge sensing, 0.01 mm detection accuracy, 40 mm opening.
View Model
WU2000 Actuator
Electric correction drive, 2500 N rated thrust, stroke options from ±25 to ±130 mm.
View ModelTypical Applications
Narrow Web Label Presses
Flexo, intermittent rotary and PS-plate offset label machines, unwind through rewind.
Digital Printing & Inspection
Digital label lines and print inspection machines where registration depends on a stable web position.
Die-Cutting & Finishing
Post-press finishing and die-cutting equipment where edge position drives waste matrix behavior.
Slitting & Rewinding
Narrow and medium web slitter rewinders needing correction in the process section.
Request a Quotation
Tell us the web width, the material and where in the machine it goes, and we will come back with a model code and a price.
