Through-Shaft Tension Sensor
LS100A Through-Shaft Tension Sensor
LS100A is a through-shaft tension sensor for online web tension monitoring in paper, film, nonwoven, metal foil and composite web applications. It can be matched with tension amplifiers, transmitters, indicators and automatic tension controllers.
Key Features
Through-shaft tension sensing for demanding converting environments.
- Selectable output signals such as 0–5 V, 0–10 V or 4–20 mA.
- Compatible with fully automatic tension controllers.
- Compatible with tension signal amplifiers.
- IP66 protection rating for demanding production environments.
| Model Series | LS100A |
|---|---|
| Product Type | Through-shaft tension sensor |
| Power Supply | DC 10 V |
| Accuracy Class | 0.5% |
| Repeatability Error | ±0.25% FS |
| Combined Non-Linearity and Hysteresis Error | ±0.5% FS |
| Standard Temperature | 0–50°C |
| Maximum Overload | 500% |
| Protection Rating | IP66 |
Dimension values are provided for model selection and installation reference. Please confirm the roller shaft size and mounting dimensions before final selection.
| Model | Range (kg) | F | H | D | J | B | C | A | I | G | H1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LS100A-015-17 | 15 | 105 | 60 | 22 | 17 | 75 | 6.5 | 97 | 36.5 | 16 | 3 |
| LS100A-025-17 | 25 | 105 | 60 | 22 | 17 | 75 | 6.5 | 97 | 36.5 | 16 | 3 |
| LS100A-050-17 | 50 | 105 | 60 | 22 | 17 | 75 | 6.5 | 97 | 36.5 | 16 | 3 |
| LS100A-025-25 | 25 | 125 | 70 | 31 | 25 | 95 | 6.5 | 107 | 47.5 | 18 | 4 |
| LS100A-050-25 | 50 | 125 | 70 | 31 | 25 | 95 | 6.5 | 107 | 47.5 | 18 | 4 |
| LS100A-075-25 | 75 | 125 | 70 | 31 | 25 | 95 | 6.5 | 107 | 47.5 | 18 | 4 |
| LS100A-100-25 | 100 | 125 | 70 | 31 | 25 | 95 | 6.5 | 107 | 47.5 | 18 | 4 |

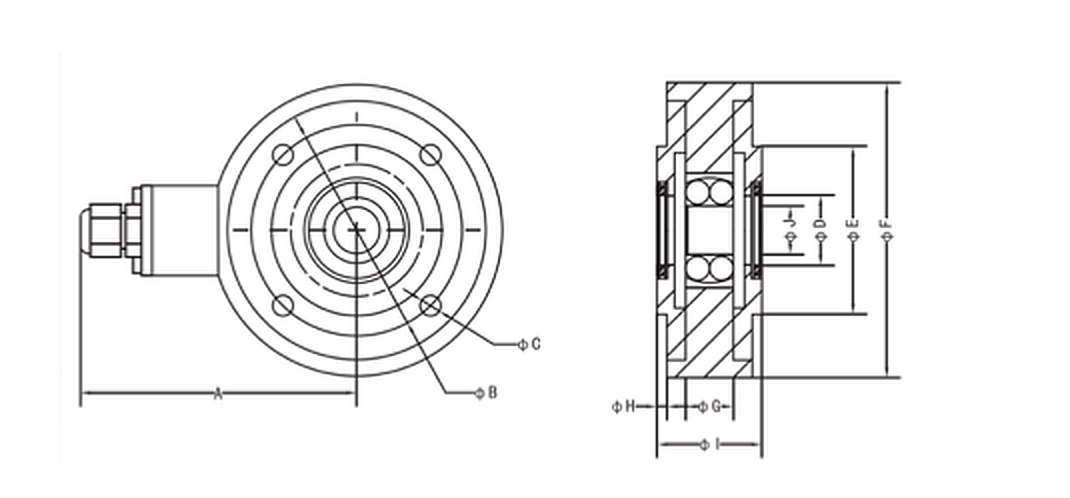

Dimensions
Mounting and dimension drawing
Replacement & Spare Part
Replacing an LS100A on your machine?
Replacing a load cell from another manufacturer? If the rated load, shaft diameter and mounting dimensions match, one of these can replace it. Send the old sensor’s label and mounting dimensions and we will check the fit.
What to match
Check whether the shaft is 17 mm or 25 mm: the sensor body dimensions change with the shaft size. Confirm the rated load and the required output: 0–5 V, 0–10 V or 4–20 mA. Compare the mounting dimensions with the model table above.
What to send us
Send a photo of the sensor label, a photo showing how it is mounted, and the model of the connected controller or signal amplifier. Include the old sensor’s mounting dimensions so we can check the fit.
Measurement checks for LS100A installations
Use these checks to review the sensor installation and measurement setup.
Paired sensors give roughly half the expected reading
Confirm that both sensors in the pair are connected and summed. One sensor measures only the share of roller load it carries.
The reading changes as line speed rises
Check the wrap angle over the measuring roller. A web path that moves with roll diameter changes the measured force even without a real tension change. Use fixed idlers on both sides of the measuring roller.
A jump in reading or a full-scale indication
Inspect the cable and connector, then check whether a web break or hard stop overloaded the sensor. Compare the roller load during the event with the listed 500% maximum overload.
17 mm or 25 mm shaft: two body sizes
Choose LS100A when a through-shaft tension sensor is required for online web tension monitoring in demanding converting environments.
| Good Fit | Through-shaft roller installations, harsh production environments, IP66 protection requirements and stable online tension feedback. |
|---|---|
| Check First | Confirm shaft diameter, roller structure, rated load, output signal, mounting dimensions and installation space before selection. |
| System Match | Use with compatible tension amplifiers, indicators, transmitters or automatic tension controllers according to the required output signal and control architecture. |
Through-shaft measurement from unwind to rewind
Unwind Tension Monitoring
Online tension feedback for unwind sections in converting equipment.
Process Tension Control
Stable tension measurement through printing, laminating, coating or converting sections.
Rewind Tension Feedback
Tension feedback for rewind sections and finished roll quality control.
Harsh Production Environments
Through-shaft sensor option for applications requiring stronger protection and stable installation.
