Cantilever Tension Sensor
LX100A Cantilever Tension Sensor
LX100A is a cantilever tension sensor with a single-cantilever roller structure for web tension measurement. It provides stable tension feedback with reduced sensitivity to web position changes on the roller surface.
Key Features
Cantilever roller tension sensing for stable web tension feedback.
- Cantilever roller structure supports simple installation and compact machine layouts.
- Multiple rated load options are available for different tension ranges.
- Multiple roller width specifications help reduce the influence of web position changes.
- Custom roller width, roller diameter and surface treatment options are available.
- Suitable for stable web tension detection in unwind, process or rewind sections.
| Excitation Voltage | DC 5–12 V |
|---|---|
| Rated Load | 10 kg / 25 kg / 50 kg / 100 kg |
| Output Voltage | 2 mV/V |
| Strain Gauge Resistance | 350 Ω |
| Strain Gauge Type | Full-bridge semiconductor |
| Non-Linearity / Hysteresis Error | ±0.05% of range |
| Maximum Overload | 300% of rated load |
| Protection Rating | IP54 |
| Temperature Range | Compensation: −10°C to +55°C; operation: −20°C to +85°C |
| Model | Roller Width / Layout | Rated Load | Diameter A | B | C | D | Diameter E | Diameter K | Diameter J |
|---|---|---|---|---|---|---|---|---|---|
| LX100A-L | 220 mm layout | 10 kg, 25 kg, 50 kg, 100 kg | 60 | 220 | 65 | 280 | 90 | 75 | 9 |
| LX100A-L | 420 mm layout | 10 kg, 25 kg, 50 kg, 100 kg | 60 | 420 | 65 | 480 | 90 | 75 | 9 |

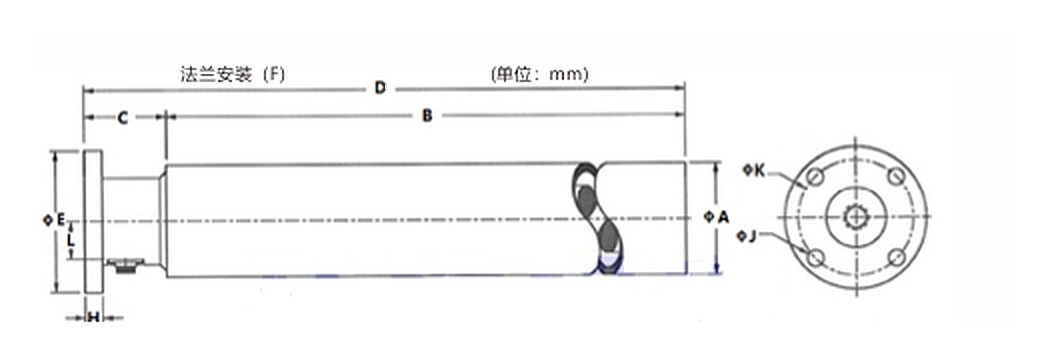

Dimensions
Dimension drawing
Replacement & Spare Part
Replacing an LX100A on your machine?
Replacing a load cell from another manufacturer? If the rated load, shaft diameter and mounting dimensions match, one of these can replace it. Send the old sensor’s label and mounting dimensions and we will check the fit.
What to match
Confirm the required rated load: 10, 25, 50 or 100 kg. Send the roller width and roller diameter, and check the cantilever mounting dimensions against the existing machine.
What to send us
Send a photo of the sensor label, a photo showing how it is mounted, and the model of the connected controller or signal amplifier. Include the old sensor’s mounting dimensions so we can check the fit.
Measurement checks for LX100A installations
Use these checks to review the sensor installation and measurement setup.
The zero point changes after roller or bearing work
With the roller fitted and no web, set zero again and calibrate with a known weight. A different roller changes the dead weight the sensor measures.
The reading follows speed changes without a tension change
Check the wrap angle and the web path on each side of the measuring roller. If they move with roll diameter, the measured force changes; fit fixed idlers on both sides.
Sudden jumps or a full-scale reading
Start with the cable and connector. Then check for an overload, such as a web break or hard stop, and compare the event’s roller load with the listed maximum overload of 300% of rated load.
One cantilever roller, four load ratings
Choose LX100A when a cantilever roller tension sensor is required for simple installation and stable web tension feedback.
| Good Fit | Cantilever roller installations, compact machine layouts and applications where web position on the roller may vary. |
|---|---|
| Check First | Confirm roller width, roller diameter, rated load, surface treatment, web width and installation space before selection. |
| System Match | Use with compatible tension amplifiers, indicators, transmitters or automatic tension controllers according to the required output signal and control architecture. |
Cantilever feedback for slitters and compact lines
Compact Converting Machines
Cantilever tension feedback for compact converting equipment and limited installation spaces.
Unwind / Rewind Sections
Tension measurement for unwind and rewind sections where cantilever roller installation is suitable.
Slitter Rewinders
Stable tension detection for slitting and rewinding applications.
Custom Roller Applications
Suitable when roller width, diameter or surface treatment needs to be customized.
